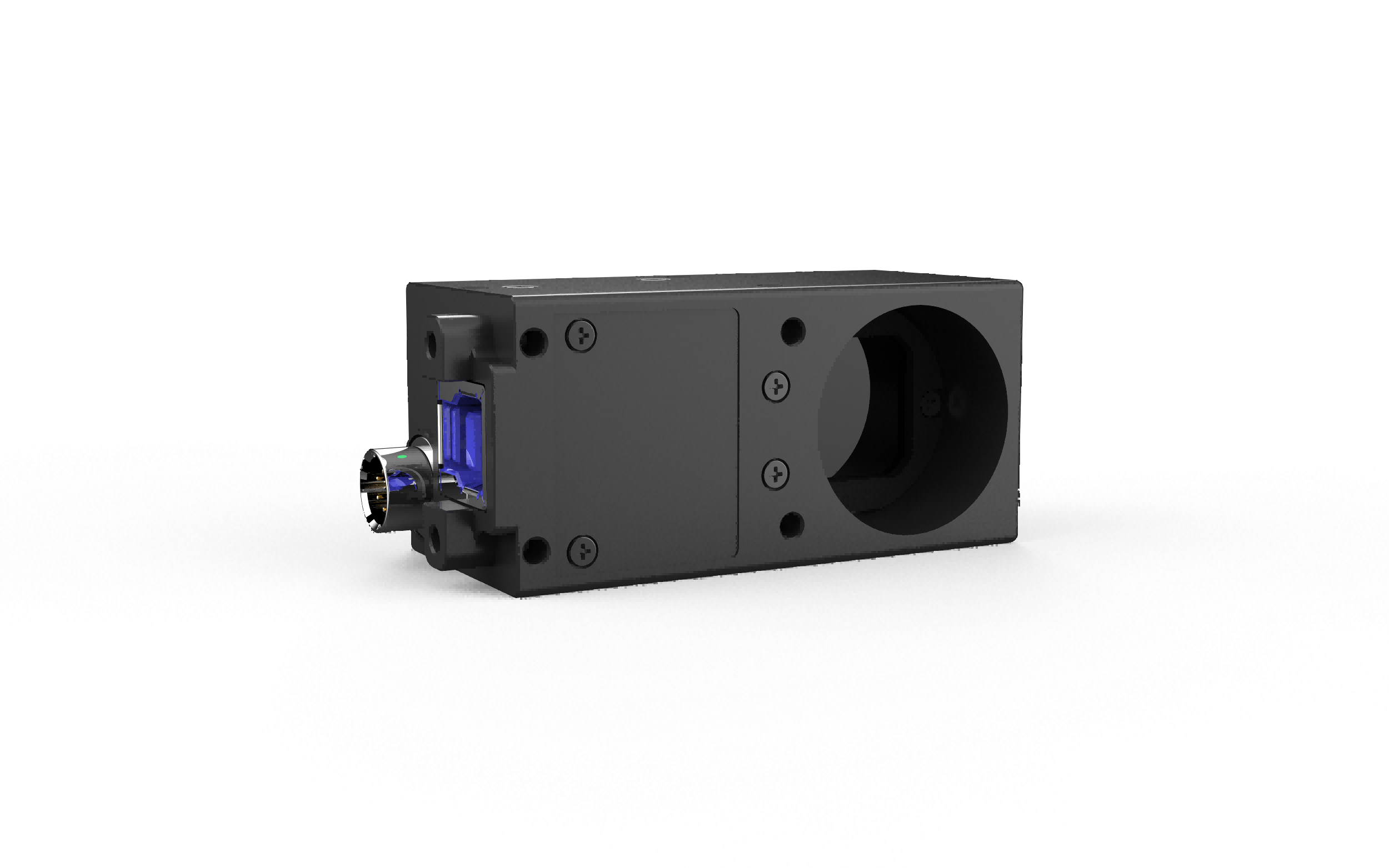

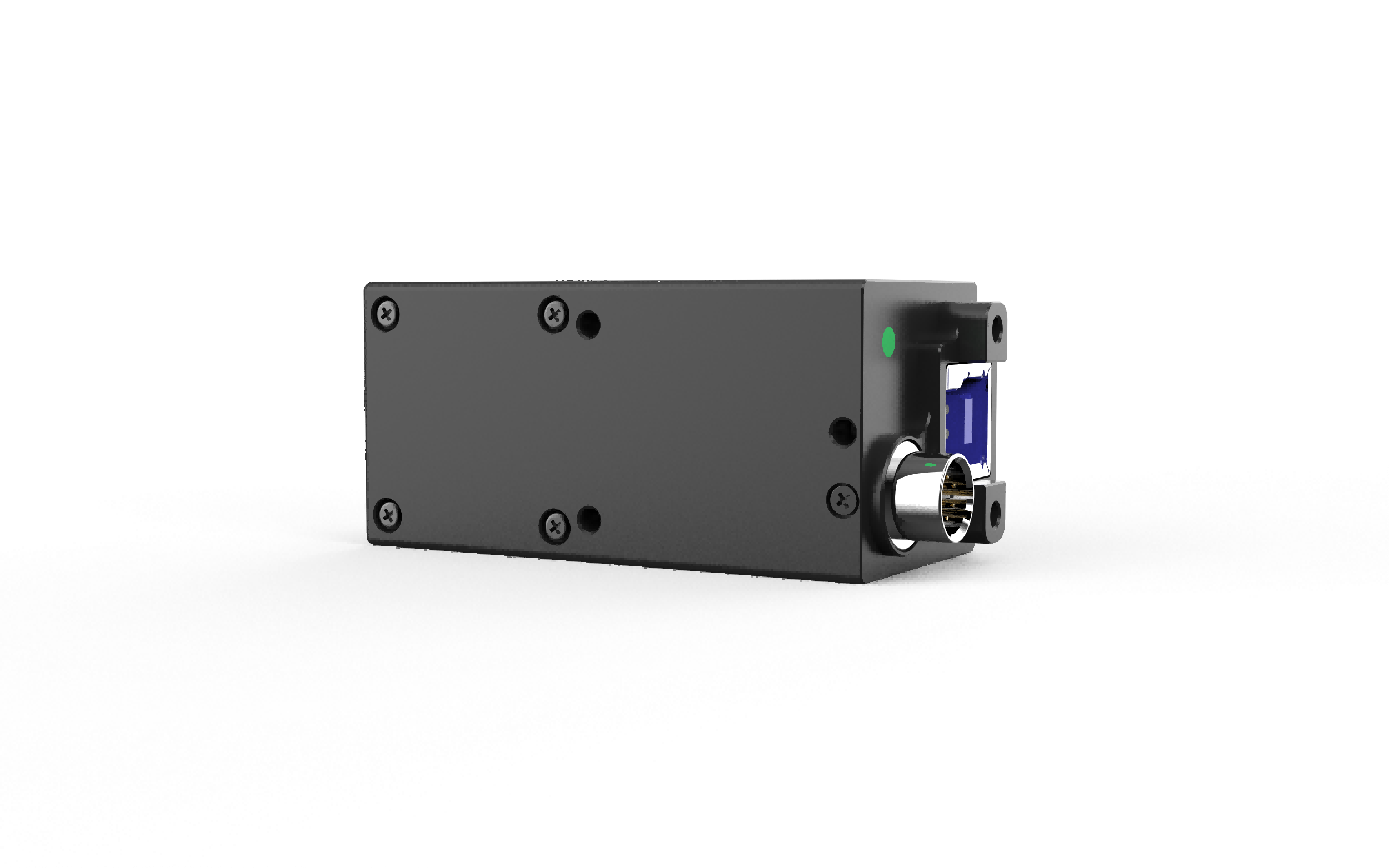

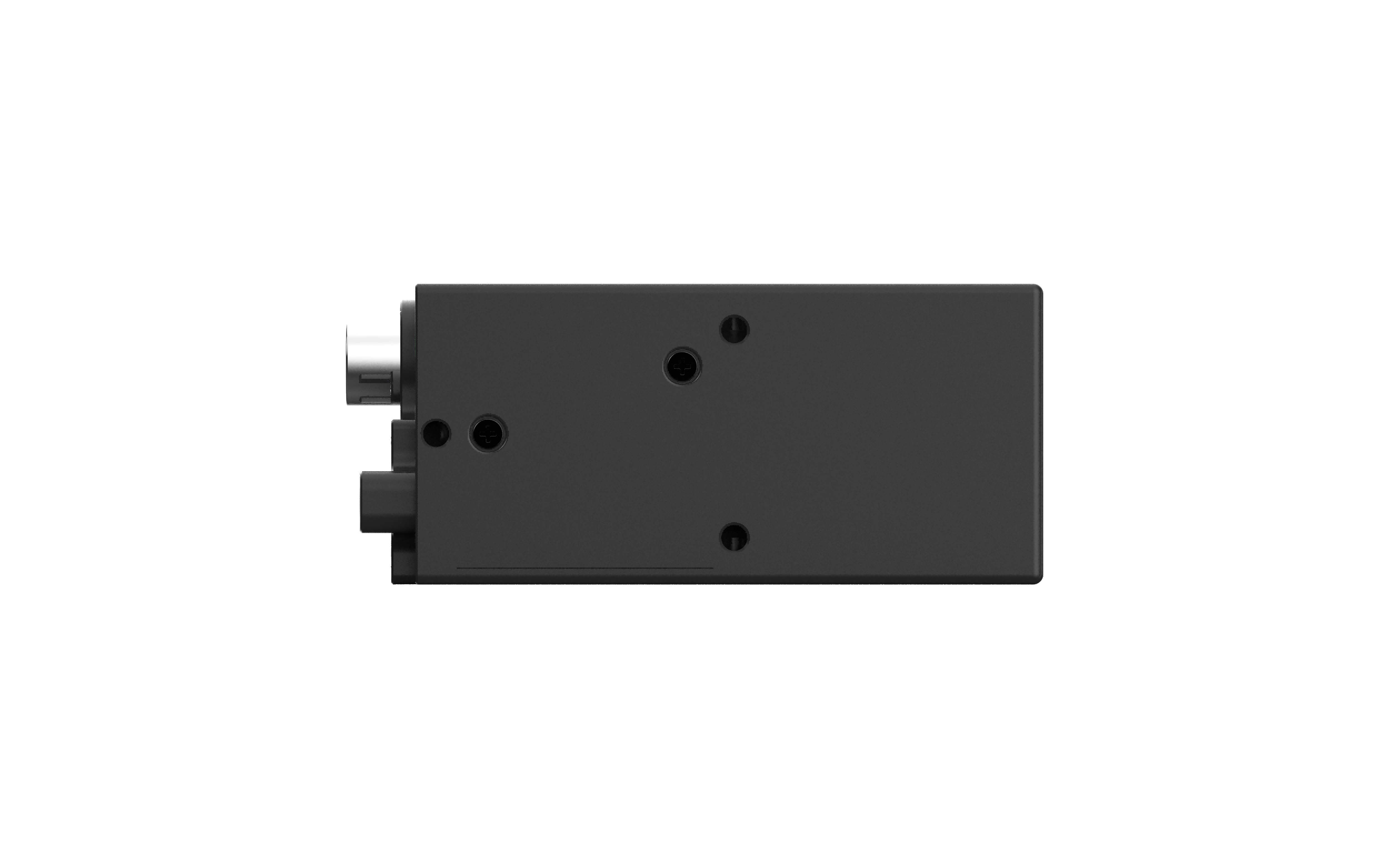

MV-SUA1600M-90 Industrial Camera
| Model ： | MV-SUA1600M-90 |
| Sensor Size： | 1/2.3″ |
| Type： | CMOS |
| Resolution： | 4608×3456 |
| Frame Rate ： | 12fps |
CN
Logon
Register
PRODUCT
- Parameter
- Details
- Download
Model
MV-SUA1600M-90
Sensor
1/2.3" CMOS
Camera type
Mono
Pixel size
1.34umx1.34um
Effective pixels
16MP
Resolution @ frame rate
4608x3456MAX@12fps
Exposure mode
Line exposure,global start
Sensitivity
142mV 1/30s
GPIO
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
Output pixel width
10bit
AD width
12bit
Frame buffer
128MBytes
Exposure time range
0.0545~951.7ms
Maximum gain (multiple)
16
User EEPROM
2K Bytes
Frequency output format
Mono 8/12bit
Video output format
USB3Vision 1.0,GenICam
Lens interface
C-mount
Data interface
USB3.0
Power supply
USB 5V/Aviation head power supply 12V
Power
<3W
Boundary dimension
29X39.5X32.7(mm)(Lens base and rear shell interface are not included)
Weight
<100g
Working temperature
0~50℃
Working humidity
20~80%(No Condensation)
Storage temperature
-30~60℃
Storage humidity
20~95%(No Condensation)
Operating system
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
Drive program
DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming language
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
